J-LOC B42 Dead Length Expanding  I. D. Collets
"The Answer to Inside Diameter Workholding"

No Machining Necessary!
No assembly Necessary!
No Screws To Break!
Virtually As Rigid As Your O. D. Collets!
Only I.D. Collet That Works On Dead Length Collet Chucks!
Collet May Be Disassembled by Loosening One Screw!

Just Remove Your O. D. Collet And Insert A J-LOC I. D. Collet.

Strongest I. D Collet On The Market Today!!!
J-LOC I. D Collets offer .0005" Repeatable accuracy.

Excellent for:
 Milling, Turning, Grinding, Welding Or Assembly

Specials Available Upon Request.

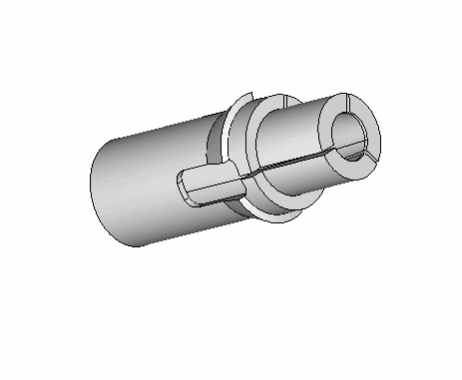

J-LOC B42 I. D. Collet In B42 Dead Length Collet Chuck
With Work Part


J-LOC B42
Push Type I. D. Collet


The Expansion Plug And Pressure Segments Are Titanium Nitride Coated for Long Life

J-LOC
NUMBER

***SIZE
AN EXACT SIZE (+) OR (-) .001 MUST BE SPECIFIED

(SEE EXPLANATION BELOW)

CRITICAL DIMENSIONS

O.A.L.

WIDTH

GAGE
LENGTH

PRICE

JLB42P375

.375 - .499

4.195

0.375

0.468

$450.00

JLB42P500

.500 - .624

4.320

0.500

0.468

$450.00

JLB42P625

.625 -.749

4.445

0.625

0.468

$450.00

JLB42P750

.750 - .874

4.570

0.750

0.468

$450.00

JLB42P875

.875 - .999

4.695

0.875

0.468

$450.00

JLB42P1000

1.000 1.124

4.820

1.000

0.468

$450.00

JLB42P1125

1.125 1.499

5.070

1.250

0.468

$450.00

JLB42P1500

1.500  2.000

5.320

1.500

0.468

$550.00

***All dimensions in the "SIZE" column set a range for that particular i.d. collet.
An exact size must be selected for each collet purchased to + or - .001".

Maximum Expansion - .020"
