J-LOC 5C Machinable Expanding I. D. Collet
Turning procedure

Step 1

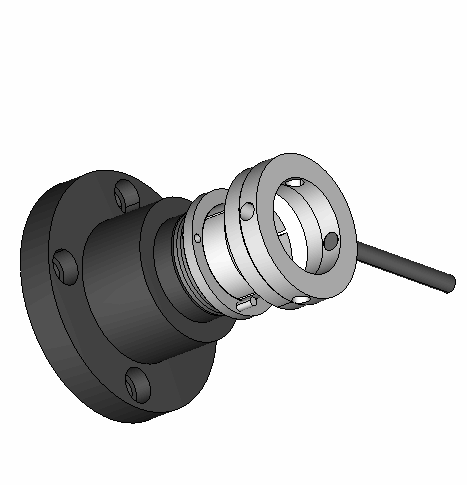

Install collet in collet chuck using the J-LOC installation and removal spanning wrench.

Screw the collet in until the collet clamps the i.d. of the wrench.

Un-screw the collet until the wrench is released.  (1/4 - 1/2 turn)

Line up the appropriate anti-rotation screw in the chuck body with the key way in the collet body.

The anti-rotation screw should only align with the sides of the key way in the collet.  This screw is not used to clamp against the collet body

Step 2 Remove the collet wrench and install the machining clamp ring on the collet.

Clamp the collet on the i.d. of the clamp ring.

(Collet must be clamped on the clamp ring in order to machine the holding diameter)
(Do not  actuate the collet without a clamp ring or a work part on the clamping surface.)

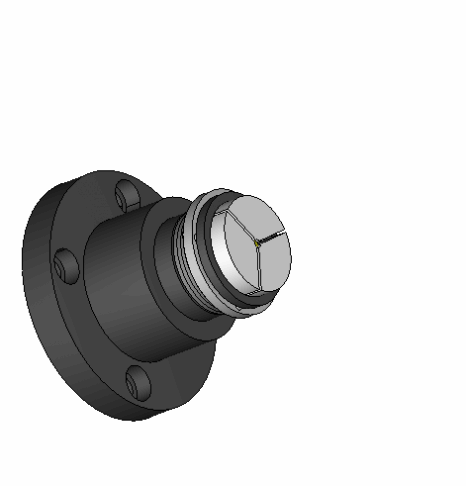

Step 3 Machine the J-LOC machinable i.d. collet to the desired size and holding depth not to exceed the maximum depth and minimum diameter specified for the collet being used.  The collet will expand up to .020" over the machined size.

(Do not machine into the clamp ring)
(Do not  actuate the collet without a clamp ring or a work part on the clamping surface.)

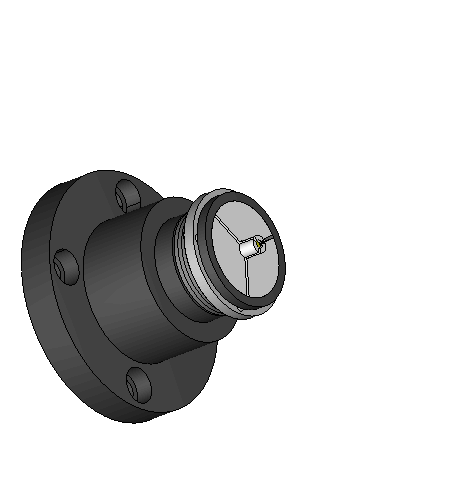

Step 4 Remove the machining clamp ring
Step 5 Install and clamp on the work part to be machined.


(Do not clamp the collet without a work part on the holding surface.  This may cause damage to the collet)
