System
Advantages
*Save set up time
*Inserts are re-usable with repeatable accuracy of .0005" T.I.R.
*Simple patented user friendly design
*Bolt on like any other replacement Jaw.  Virtually eliminates re-boring jaws for repeat jobs.
*Chucks of equal size use same inserts regardless of jaw mount configuration.

Master Jaw Features

*10  second or less per jaw insert change out time
*Bolt on like standard soft jaws
*Inserts are reversible for greater economy
*
Equal strength as standard soft jaw

Insert
 Features

*Soft, easy to machine (mild steel)
*Reusable and repeat to .0005" T.I.R
*Reversible in the master jaw for greater economy
*Held securely in place by a cone point lock screw and solid lock pin

D-Style Master Jaws
For
Larger Variation Of Work Parts Sizes

RELEASE INSERT
(3-4 TURNS OF WRENCH)
REMOVE INSERT REPLACE INSERT
WITH NEW OR PRE-BORED INSERT

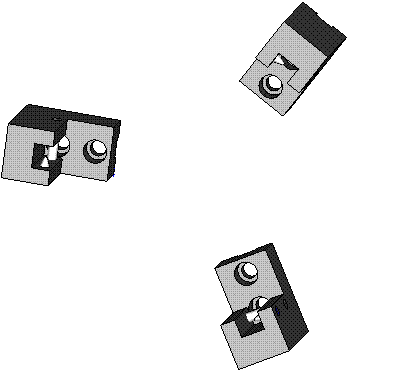

TIGHTEN CONE POINT SCRES TO SECURE THE INSERT IN PLACE ANIMATED DEMONSTRATION

How it Works!




When the Lock Screw is tightened into the lock screw detent of the insert, three directional insert clamping occurs.  Clamping force is up against the end of the J-LOC master jaw, back against the Lock Pin and securely in contact with the side of the tongue.  This creates a no clearance situation to insure rigidity and repeatability.
