NR STYLE MASTER JAWS
CHANGE JAW INSERTS IN 10 SECONDS OR LESS
WITH .0005" T.I.R. REPEATABLE ACCURACY!
MULTIPLE INSERT POSITIONS!
O.D. OR I.D.!
J-LOC THREE HOLE NR QUICK CHANGE MASTER JAW VERSATILITY FOR CHUCKING TYPE APPLICATION
INSERTS MAY BE CHANGE IN 10 SECONDS OR LESS WITH .0005 REPEATEABLE ACCURACY

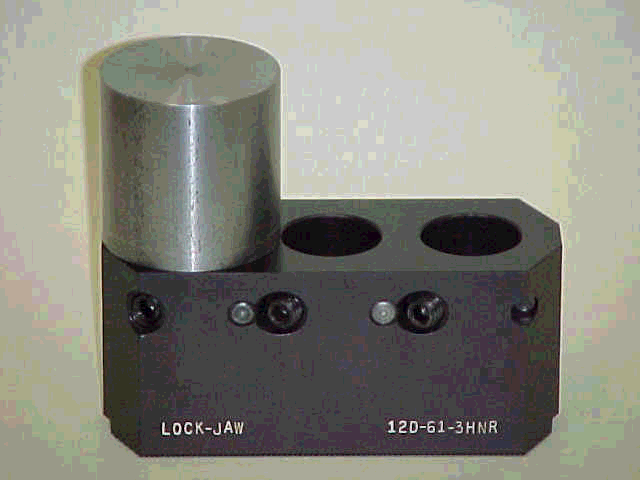

FIRST INSERT POSITION O.D. & I.D. SECOND INSERT POSITION O.D. & I.D. THIRD INSERT POSITION O.D. & I.D.

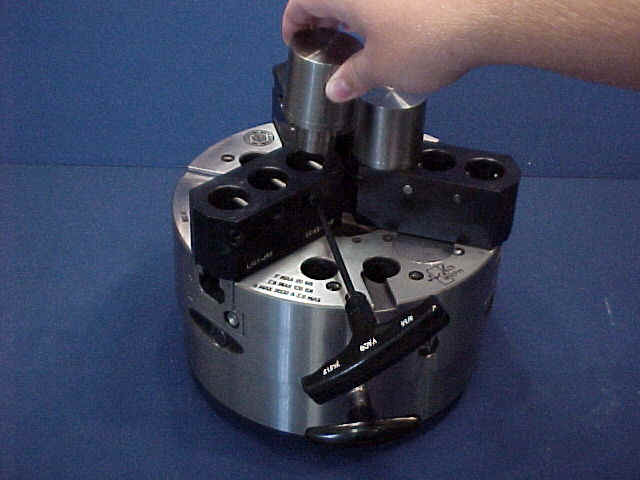

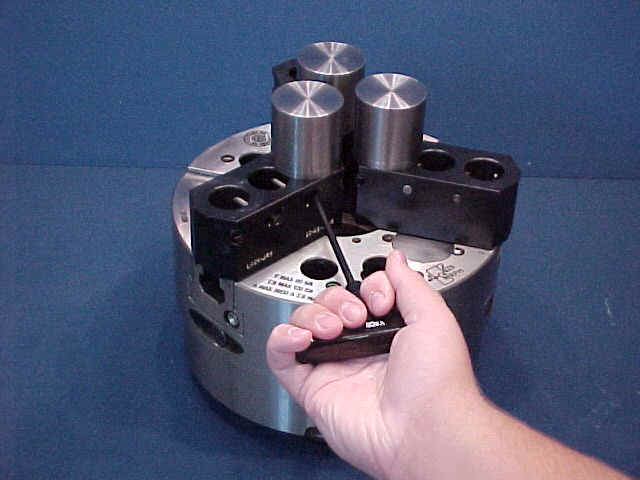

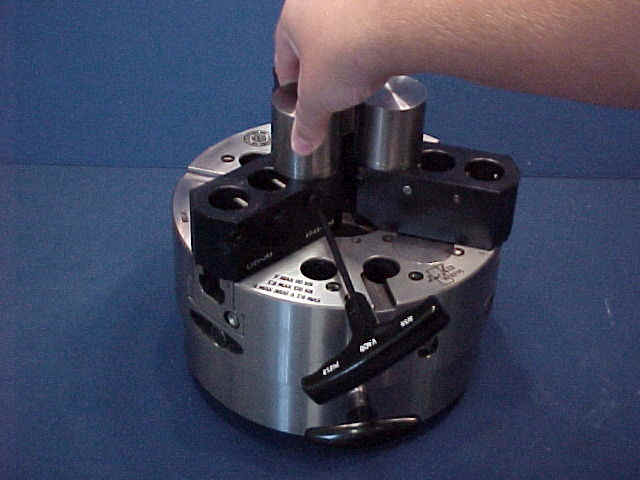

Insert Change Procedure - 10 seconds or less per jaw!

LOOSEN
LOCK-SCREW
TURN INSERT 45 DEGREES COUNTER CLOCKWISE REMOVE
INSERT
REPLACE INSERT AND TURN 45 DEGREES CLOCK WISE

TIGHTEN LOCK-SCREW


System Advantages:

* Economical inserts
* Save set up time
* Inserts are reusable with .0005" repeatable accuracy
* Simple patented user friendly design
* Bolts on like any other replacement jaw
* Virtually eliminates re-boring of jaws for repetitive parts
* Chucks of equal diameter size use the same Insert regardless of jaw mounting configuration
* Hold equally as well on the O.D. or I. d. simply by reversing the chuck clamping direction



NR-Style Catalog




 J-LOC NR-Style Video Demonstration
Mill Application

CLOSE UP OF PATENTED DESIGN FEATURES

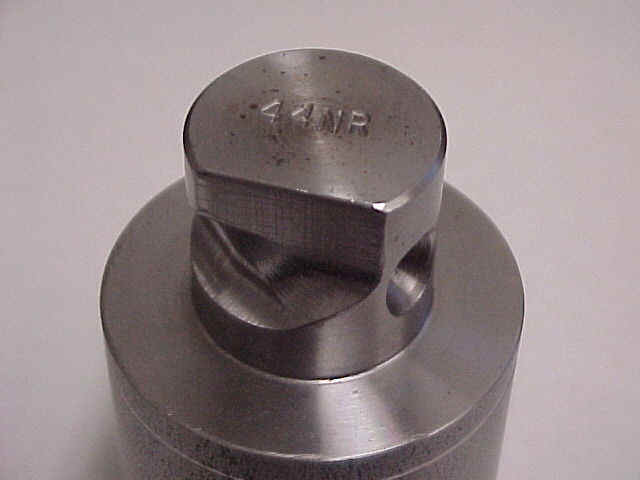

CLOSE UP SHOT OF THE PATENTED INSERT DESIGN REVEALS THE HELIX WHICH ENABLES THE INSERT TO LOCK AROUND THE HARDENED AND GROUND LOCK-PIN  INSIDE THE MASTER JAW AND THE LOCK-SCREW POSITIONING DETENT WHICH INSURES RIGIDITY AND ACCURACY

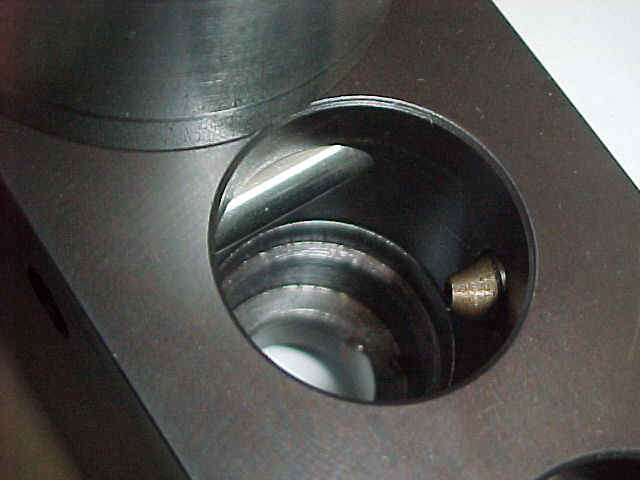

CLOSE UP SHOT OF THE MASTER JAW REVEALS THE PATENTED HARDENED AND GROUND LOCK-PIN AND THE CONE POINTED LOCK-SCREW
